5G RF Pogo Pin

5G RF Pogo Pins are specialized spring-loaded connectors designed to facilitate high-frequency signal transmission in 5G communication devices and infrastructure. As 5G technology operates at higher frequencies (sub-6 GHz and mmWave bands) with increased data rates, these pogo pins must meet stringent requirements for signal integrity, impedance matching, and low insertion loss to ensure reliable communication.

The key technical features of 5G RF Pogo Pins include a precision-engineered contact structure, typically consisting of a plunger, spring, and barrel made from high-conductivity materials such as beryllium copper or phosphor bronze, plated with gold or silver to minimize signal loss and corrosion. The plunger’s tip is often designed with a rounded or conical shape to ensure consistent contact pressure (typically 50-200 grams) and reduce signal reflection at the interface.

Impedance control is critical for 5G RF Pogo Pins, as mismatched impedance can cause signal reflections and attenuation. Manufacturers achieve this by optimizing the pin’s geometry, including the diameter of the plunger, the spacing between contacts, and the dielectric properties of any insulating materials used. For mmWave applications, the pins are designed to operate with characteristic impedances of 50 ohms, matching the standard for RF systems, and may incorporate shielding to prevent electromagnetic interference (EMI) from adjacent components.

Durability is another important factor, as 5G devices and base stations require connectors that can withstand thousands to millions of mating cycles without degradation. The spring mechanism, often made from stainless steel, is designed to maintain consistent force over time, while the plating ensures low contact resistance (typically less than 50 milliohms) even after repeated use.

5G RF Pogo Pins find applications in a range of devices, including smartphones, small cells, macro base stations, and test equipment. In smartphones, they connect the RF module to the antenna, enabling seamless transmission and reception of 5G signals. In base stations, they are used in transceiver modules and antenna arrays, where their compact size (often less than 2mm in diameter) allows for high-density packaging, a key requirement for 5G’s massive MIMO (multiple-input multiple-output) systems. As 5G networks continue to evolve, these pogo pins will play a crucial role in enabling the high-performance, reliable connectivity that the technology demands.

Read recommendations:

Pogo Pin connector price inquiry

Magnetic Connector

High precision magnetic connector

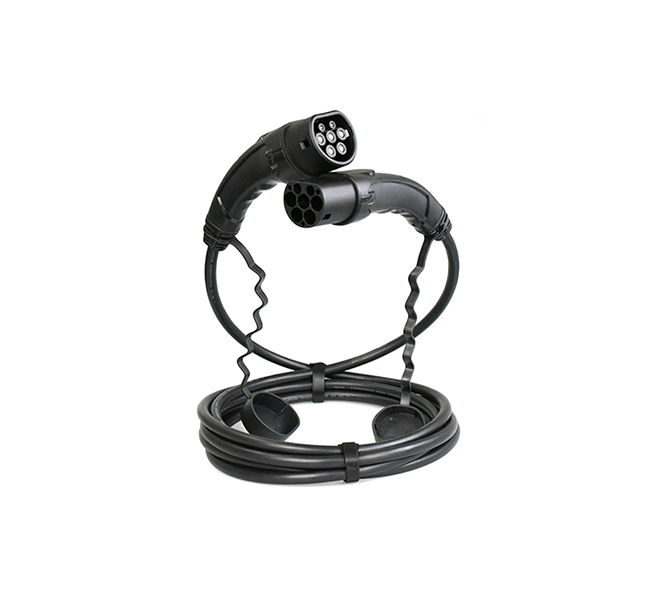

The advantages of European standard charging guns revealed
