Blind-Mate Pogo Pin

Blind-Mate Pogo Pins are specialized connectors designed to facilitate reliable electrical connections in applications where precise alignment between mating components is challenging or impossible. These pins are widely used in industries such as aerospace, telecommunications, and consumer electronics, where quick and secure connections are essential, even when visual alignment is not feasible.

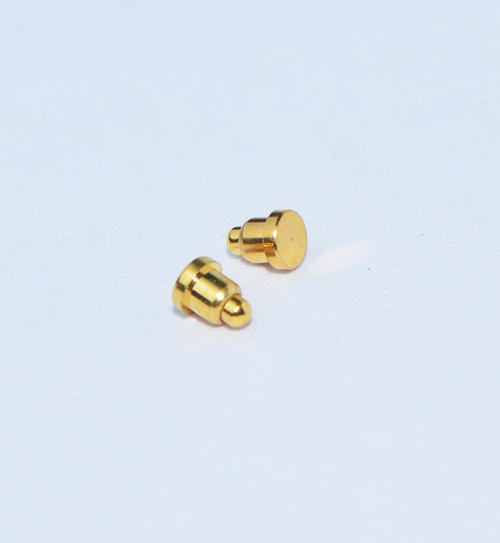

The key feature of Blind-Mate Pogo Pins is their ability to accommodate axial and radial misalignment. This is achieved through their unique design, which typically includes a spring-loaded plunger housed within a cylindrical barrel. The spring allows the plunger to move freely along its axis, compensating for positional errors between the mating connectors. Axial misalignment of up to several millimeters and radial misalignment of a few degrees can be easily accommodated, ensuring a consistent electrical connection.

In terms of construction, the plunger and barrel are often made from high-conductivity materials such as brass or copper, with plating options like gold or nickel to enhance conductivity and corrosion resistance. The spring, usually made from stainless steel, provides the necessary force to maintain contact pressure, ensuring low contact resistance even with repeated mating cycles. Some designs also incorporate a ball or rounded tip on the plunger to further improve alignment tolerance and reduce wear.

Applications of Blind-Mate Pogo Pins are diverse. They are commonly used in backplane connectors, where multiple boards need to be connected without precise alignment, and in test fixtures, where quick and repeated connections to electronic components are required. In medical devices, they enable reliable connections in compact spaces where access is limited. The robust design of these pins ensures long service life, with some models capable of withstanding tens of thousands of mating cycles without significant degradation in performance.
