Classification and Parameter Selection of Pogo Pins

　　Pogo pins can be classified in several ways, and understanding these classifications is crucial for proper parameter selection in different applications.

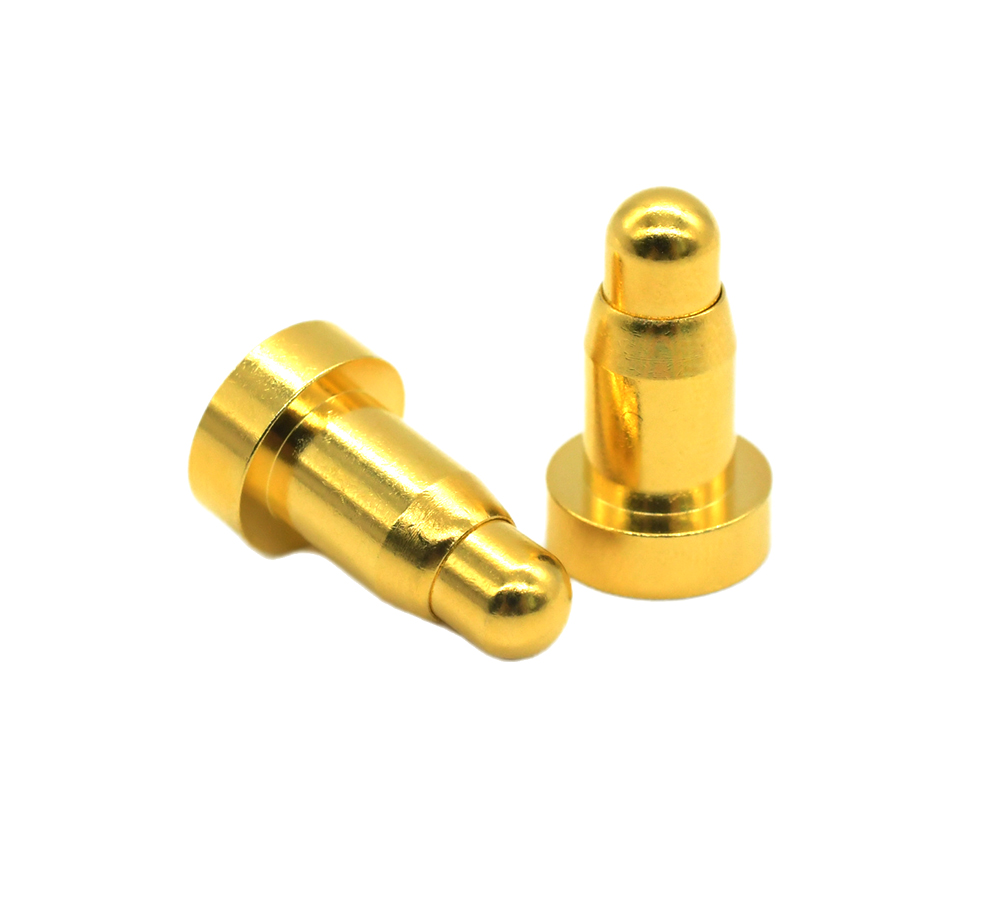

　　Based on the structure, Pogo pins can be divided into standard - type, double - spring type, and multi - stage type. Standard - type Pogo pins are the most common, consisting of a barrel, a spring, and a plunger. They are suitable for general - purpose electrical connections. Double - spring type Pogo pins have two springs, providing greater contact force and stability, which is ideal for applications where vibration resistance is required. Multi - stage Pogo pins are designed for complex connection requirements, such as those involving multiple electrical contacts or different contact heights.

　　In terms of contact material, Pogo pins can be made with various metals and coatings. Gold - plated tips are widely used due to their excellent electrical conductivity, low contact resistance, and high corrosion resistance. Silver - plated and nickel - plated options are also available, each with their own advantages in terms of cost - effectiveness and specific electrical properties.

　　When it comes to parameter selection, several key factors need to be considered. Contact force is a critical parameter. It determines the quality of the electrical connection and the ability to withstand vibrations. For example, in high - vibration environments, a higher contact force, typically ranging from 50 - 200 grams, may be required. The operating temperature range is also important. Pogo pins used in automotive or industrial applications may need to withstand a wide range of temperatures, from - 40°C to 125°C or even higher. Current - carrying capacity is another essential parameter. It depends on the size and material of the Pogo pin, with larger - diameter pins generally capable of carrying higher currents. Additionally, the insulation resistance, which measures the ability of the Pogo pin to prevent electrical leakage, should also be considered, especially in applications where electrical safety is a concern.
