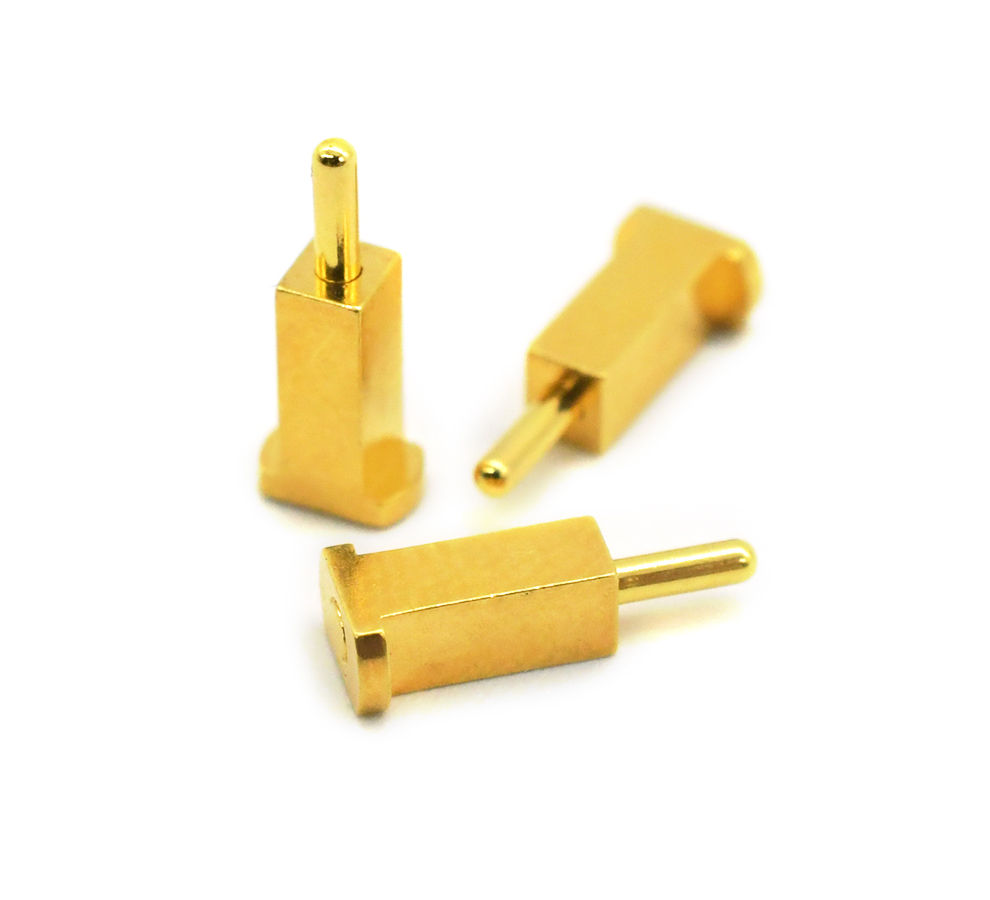

Design Key Points of High-Current Pogo Pins

　　Designing high-current pogo pins demands a meticulous approach to ensure reliable electrical connectivity, durability, and safety under substantial current loads. The primary focus lies in several critical aspects, including material selection, structural configuration, and electrical contact design.

　　Material selection is the cornerstone of high-current pogo pin design. For the pin body and barrel, materials with excellent electrical conductivity and mechanical strength are essential. Copper alloys, such as beryllium copper or phosphor bronze, are commonly used due to their high conductivity and good fatigue resistance. Beryllium copper, in particular, offers superior strength and durability, enabling the pins to withstand repeated mating cycles without significant wear. The plating on the contact surfaces is also crucial; gold or silver plating is often applied. Gold plating provides excellent corrosion resistance and low contact resistance, while silver plating, though more prone to oxidation, offers the highest electrical conductivity, making it suitable for applications where minimizing resistance is paramount.

　　The structural configuration of high-current pogo pins must accommodate the large currents flowing through them. A larger cross-sectional area of the pin and barrel helps reduce electrical resistance and prevent excessive heat generation. Additionally, the spring inside the pogo pin needs to be carefully designed. It must provide sufficient force to maintain a stable electrical contact under high currents but also allow for smooth insertion and extraction. Springs with high elastic modulus and fatigue life are preferred, and their compression characteristics should be optimized to ensure consistent contact pressure throughout the pin's operational range.

　　Electrical contact design is another vital aspect. The contact tips of high-current pogo pins are often designed with a larger surface area to distribute the current evenly and reduce the risk of hot spots. Some designs feature multi-point contacts or curved contact surfaces to enhance the contact area and improve electrical conductivity. Moreover, the contact geometry should be engineered to minimize electrical arcing during mating and de-mating, as arcing can cause surface erosion and increase contact resistance over time.

　　Mechanical stability is also crucial. High-current pogo pins may be subjected to vibrations and mechanical stresses in their operating environments. Therefore, the overall design should ensure that the pin components are securely assembled and can withstand these external forces without loosening or failing. The barrel may be designed with locking mechanisms or interference fits to prevent the pin and spring from dislodging, ensuring long-term reliability.
