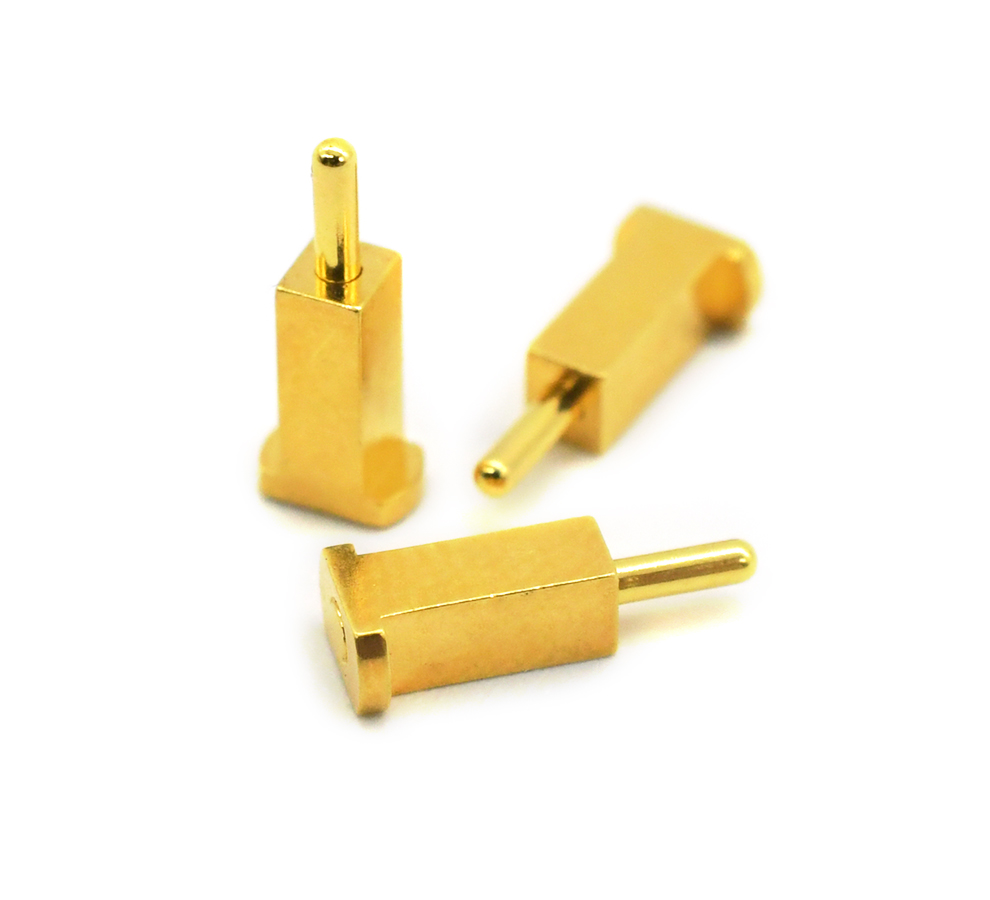

High-Precision Straight-Through Pogo Pins

　　High-precision straight-through Pogo Pins are essential in applications where minute tolerances and reliable electrical connections are non-negotiable. These specialized Pogo Pins are engineered with extreme precision to meet the demanding requirements of advanced electronic devices, such as high-speed data transmission equipment, aerospace electronics, and high-performance computing systems.

　　The manufacturing process of high-precision straight-through Pogo Pins involves meticulous attention to detail. Every component, from the plunger to the barrel and the spring, is crafted with tight tolerances. The plunger, which is responsible for making contact with the mating surface, is often made with a high level of surface finish and dimensional accuracy. A smooth surface on the plunger reduces electrical resistance and ensures a stable electrical connection, while precise dimensions guarantee consistent performance across multiple pins. The barrel, which houses the plunger and spring, is also manufactured with high precision. Its inner diameter and length are carefully controlled to ensure proper alignment and movement of the plunger, minimizing the risk of jamming or inconsistent contact.

　　The spring within high-precision Pogo Pins is a critical component that determines the force and durability of the connection. Springs are designed with specific spring rates and materials to provide the right amount of contact force. A too-weak spring may result in poor electrical contact, while a too-strong spring can cause damage to the mating surface or the Pogo Pin itself. High-quality spring materials, such as stainless steel or beryllium copper, are often used for their excellent fatigue resistance and consistent performance over a large number of cycles.

　　In applications that require high-speed data transmission, high-precision straight-through Pogo Pins play a vital role in maintaining signal integrity. Their low electrical resistance and capacitance characteristics reduce signal loss and distortion, enabling the reliable transfer of high-frequency signals. Specialized plating techniques, such as gold or palladium plating, are applied to the contact surfaces of the Pogo Pins to further enhance conductivity and prevent oxidation, which can degrade signal quality over time.

　　Quality control is of utmost importance in the production of high-precision Pogo Pins. Each pin undergoes rigorous testing, including electrical testing to measure contact resistance, mechanical testing to assess spring force and durability, and dimensional inspection to ensure compliance with strict tolerance standards. Advanced inspection equipment, such as optical microscopes and coordinate measuring machines (CMMs), is used to detect even the slightest deviations from the specified dimensions and performance criteria. By ensuring the high precision and reliability of these Pogo Pins, manufacturers can meet the exacting requirements of modern high-tech applications and contribute to the overall performance and functionality of the end devices.
