PogoPin Connection Structure

　　The PogoPin connection structure is a sophisticated design that enables reliable electrical connections in a variety of electronic devices. This structure is based on the unique properties of PogoPins and how they interact with mating connectors.

　　At the heart of the PogoPin connection structure are the PogoPins, which are typically arranged in a specific pattern within a housing. The housing can be made of plastic or metal, depending on the application requirements. Plastic housings are often used in consumer electronics due to their lightweight and cost - effective nature, while metal housings may be preferred in industrial or high - reliability applications for their durability and shielding properties.

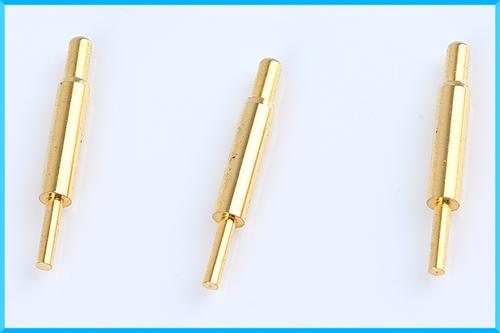

　　The PogoPins themselves consist of a plunger, a spring, and a barrel. The plunger is the part that makes contact with the mating connector. When the two connectors are brought together, the plunger is pushed back into the barrel, compressing the spring. The spring force then ensures that the plunger maintains a firm contact with the mating surface, providing a low - resistance electrical path. This spring - loaded mechanism is crucial as it allows for a certain degree of misalignment tolerance. In real - world scenarios, it's rare for two connectors to be perfectly aligned, and the PogoPin's ability to self - adjust helps to overcome this issue.

　　The PogoPin connection structure can be designed for different types of applications. In some cases, it may be a simple two - pin structure for basic power - only connections. For example, in a small battery - powered device, a two - pin PogoPin connector can be used to charge the battery, with one pin for positive voltage and the other for ground. In more complex applications, such as in smartphones or tablets, the PogoPin connection structure may have multiple pins. These pins can be used for power, data transfer, and even for communication with external devices. For instance, a four - pin PogoPin connector in a smartphone may be used for charging, USB data transfer, and for connecting to a wireless charging pad that also supports data transfer for firmware updates.

　　The manufacturing of the PogoPin connection structure requires precision. The tolerances for the size of the PogoPins, the spring force, and the alignment of the pins within the housing are all carefully controlled. This ensures that each PogoPin connection structure functions as intended, providing consistent and reliable electrical connections. In addition, the surface finish of the PogoPins is often optimized. Gold plating is commonly used on the pins to improve conductivity and corrosion resistance, as gold is a highly conductive and non - reactive metal.
