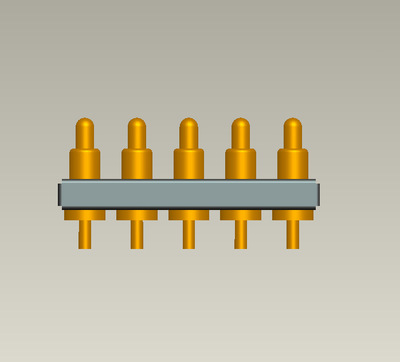

Surface - mount Technology (SMT) Spring Thumb Pins

　　Surface - mount technology (SMT) spring thumb pins, also known as SMT spring - loaded connectors, are designed specifically for surface - mount applications on PCBs. Their design allows for easy integration into modern electronic manufacturing processes.

　　One of the key features of SMT spring thumb pins is their compatibility with SMT assembly techniques. These pins can be easily placed and soldered onto the surface of a PCB using automated SMT pick - and - place machines. This not only increases the efficiency of the manufacturing process but also ensures consistent and reliable connections. The spring - loaded mechanism of these pins provides a self - aligning function. When the pin is pressed against a mating contact, the spring compresses, allowing for a proper connection even if there are slight misalignments between the components. This is particularly useful in high - density PCB designs, where precise alignment of components can be challenging.

　　SMT spring thumb pins are available in various sizes and configurations to meet different application requirements. They can be designed with different spring forces, depending on the amount of contact pressure needed. For example, in applications where a high - current connection is required, a spring thumb pin with a higher spring force may be used to ensure a low - resistance connection. In contrast, for applications where the components are more delicate, a pin with a lower spring force can be selected to avoid damaging the components.

　　In the field of consumer electronics, SMT spring thumb pins are widely used in smartphones, tablets, and laptops. In smartphones, they are used to connect the battery to the motherboard, as well as for connecting other components such as the camera module, display, and fingerprint sensor. The SMT design of these pins allows for a more compact and lightweight device design, which is highly desirable in the consumer electronics market. In the aerospace and defense industries, SMT spring thumb pins are used in avionics systems and military equipment. Their reliability and ability to withstand harsh environmental conditions, such as high temperatures, vibrations, and humidity, make them suitable for these critical applications.
