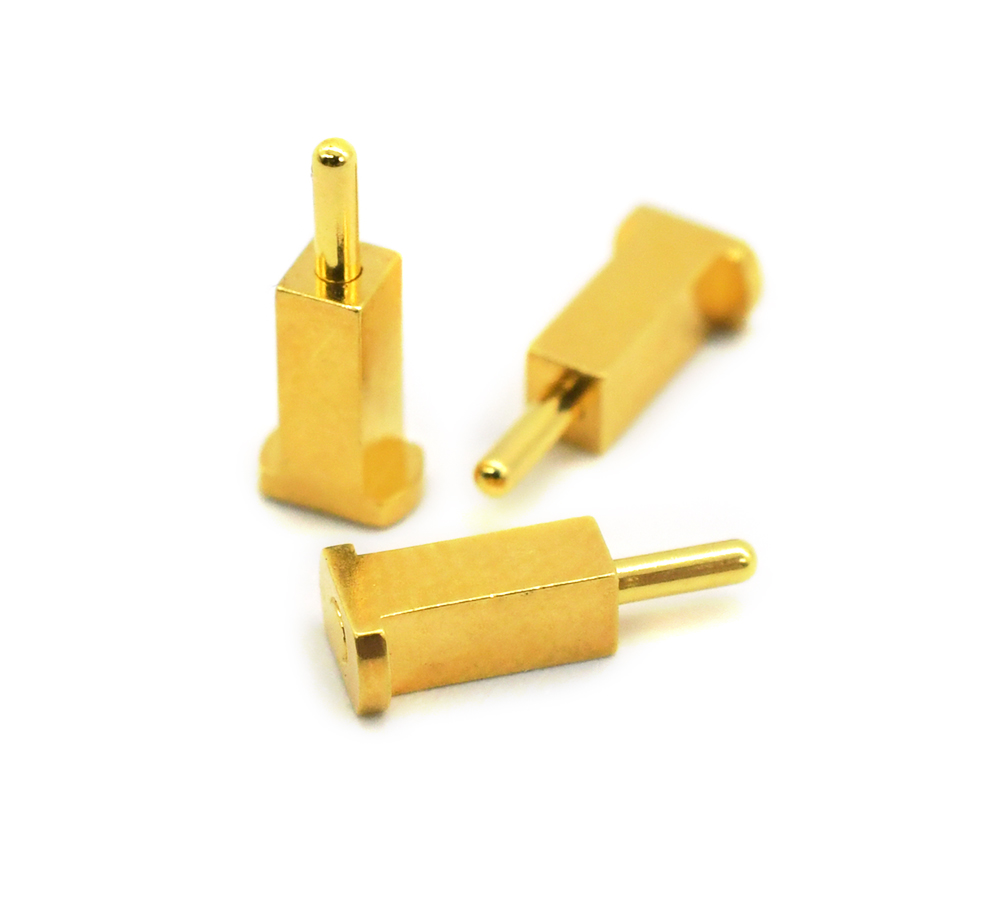

USB4 Pogo Pin

USB4 pogo pins are specialized spring-loaded connectors designed to facilitate reliable, high-speed data transfer and power delivery in USB4-enabled devices. As USB4 technology supports data rates up to 40 Gbps and power delivery up to 100W, these pogo pins are engineered to meet the stringent electrical and mechanical requirements of such high-performance applications. Unlike traditional USB connectors with fixed pins, pogo pins use a spring mechanism that allows for a secure, temporary connection, making them ideal for devices requiring frequent docking, testing, or modular assembly.

The key feature of USB4 pogo pins is their ability to maintain stable signal integrity at ultra-high speeds. They are constructed with precision-machined metal contacts, typically made from copper alloys with gold plating to minimize signal loss and corrosion. The spring-loaded design ensures consistent contact pressure, even when there are minor misalignments between mating components, which is crucial for preventing data errors in high-speed communication. This makes them suitable for applications such as laptops, docking stations, external hard drives, and industrial equipment where reliable USB4 connectivity is essential.

USB4 pogo pins also support the versatile functionality of USB4, including backward compatibility with previous USB standards (USB 3.2, USB 2.0) and compatibility with DisplayPort and Thunderbolt 3 protocols. This versatility allows them to be used in a wide range of devices, from consumer electronics to professional workstations. Additionally, their compact size enables designers to create sleeker, more space-efficient devices compared to using traditional USB ports, which can be bulky.

Durability is another important aspect of USB4 pogo pins. They are designed to withstand thousands of mating cycles without degradation, ensuring long-term reliability in high-use environments. Some models also feature ruggedized designs with dust and water resistance, making them suitable for outdoor or industrial applications. By combining high-speed performance, versatility, and durability, USB4 pogo pins play a critical role in enabling the next generation of USB4 devices.
