eMMC Test Pogo Pins

eMMC (embedded MultiMediaCard) Test Pogo Pins are specialized spring-loaded contact probes engineered to facilitate accurate, reliable testing of eMMC storage devices—widely used in smartphones, tablets, IoT devices, and automotive infotainment systems. These tiny, precision-engineered components serve as the critical interface between test equipment (such as automated test fixtures or bench-top testers) and the eMMC chip’s contact pads, enabling the transmission of electrical signals, power, and data during functional, performance, and reliability testing. Given the compact size of eMMC chips (often with contact pads as small as 0.2mm in pitch) and the high-speed data requirements of modern eMMC standards (up to eMMC 5.1, supporting data transfer rates of 400MB/s), eMMC Test Pogo Pins are designed to deliver consistent electrical performance, minimal signal loss, and durable mechanical contact.

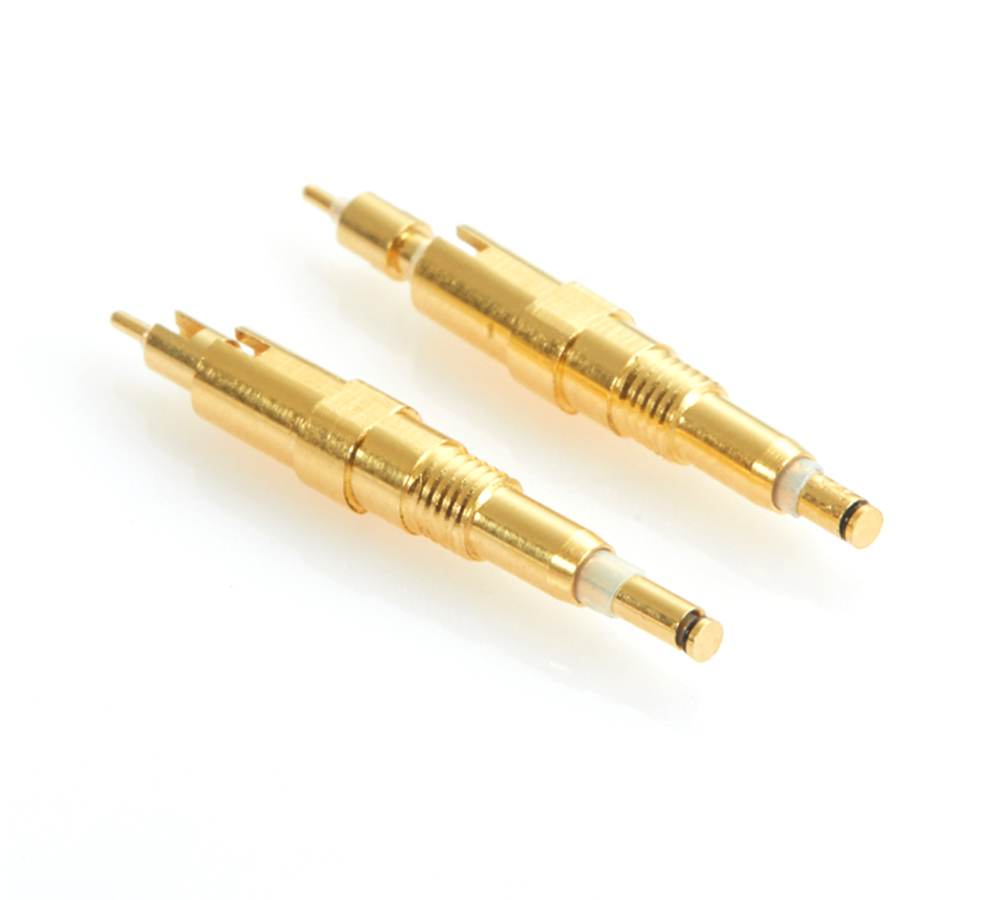

The core design of eMMC Test Pogo Pins revolves around ensuring stable signal integrity and mechanical resilience. Typically constructed with a plunger (the conductive tip that makes direct contact with the eMMC pad), a spring (to maintain consistent contact force), and a barrel (the outer casing that houses the plunger and spring), these pins are made from high-conductivity materials such as beryllium copper (BeCu) or phosphor bronze—chosen for their excellent electrical conductivity, mechanical elasticity, and resistance to fatigue. The plunger tip is often plated with a thin layer of gold (2-5μm) or palladium-nickel (Pd-Ni) to minimize contact resistance (typically below 50mΩ) and prevent oxidation, ensuring reliable signal transmission even after thousands of test cycles. The spring, usually made of stainless steel or beryllium copper, is calibrated to apply a precise contact force (ranging from 50g to 200g, depending on the eMMC pad size and material) to avoid damaging the delicate eMMC pads while maintaining a secure connection.

eMMC Test Pogo Pins are optimized for the specific electrical requirements of eMMC testing. They support the full range of eMMC signals, including data lines (D0-D7), clock signals (CLK), command signals (CMD), power lines (VCC, VCCQ), and ground lines (GND), ensuring that all functional aspects of the eMMC device are tested. For high-speed eMMC versions (e.g., eMMC 5.0 and 5.1), the pins are designed with controlled impedance (typically 50Ω or 75Ω) to minimize signal reflection and crosstalk, which can degrade data transmission quality at high speeds. Additionally, many eMMC Test Pogo Pins feature a low-profile design (with overall lengths as short as 3mm) to fit into compact test fixtures, which is critical for testing small-form-factor eMMC chips used in portable devices.

In terms of testing applications, eMMC Test Pogo Pins are used in a variety of test scenarios. During functional testing, they enable the test equipment to send commands to the eMMC chip (e.g., reading/writing data, erasing sectors) and verify that the chip responds correctly, ensuring it meets the eMMC specification. In performance testing, they facilitate the measurement of data transfer speeds, access times, and latency, helping manufacturers validate that the eMMC device meets the required performance benchmarks. For reliability testing (such as temperature cycling, humidity testing, or mechanical shock testing), the pins’ durable construction ensures that they maintain reliable contact even under harsh conditions, allowing for accurate assessment of the eMMC chip’s long-term performance.

Manufacturers of eMMC Test Pogo Pins adhere to strict quality control standards to ensure consistency and reliability. Each pin undergoes rigorous testing, including contact resistance measurement, spring force calibration, dimensional inspection (using optical measurement systems to verify tip size, pitch, and alignment), and environmental testing (to confirm resistance to temperature, humidity, and corrosion). Additionally, many pins are designed to be replaceable, allowing test fixtures to be easily maintained and repaired, reducing downtime in high-volume production environments. As eMMC technology continues to evolve—with the development of higher-speed versions (e.g., eMMC 6.0) and larger storage capacities—eMMC Test Pogo Pins are also advancing, with improvements in signal integrity, miniaturization, and durability to meet the changing needs of eMMC testing.
