Mechanical Data

Machanical Force: 1.0~20N Min

Machanical Life: 20,000 Cycles

Electrical Data

Contact Resistance: 30 Milliohm Max

Rated Voltage: 5~60VDC

Rated Current: 0.5~40A Max

Insulation Resistance: 220V

Environmental Data

Salt Spray: 48H+

Operating Temp: -40~  +60°C

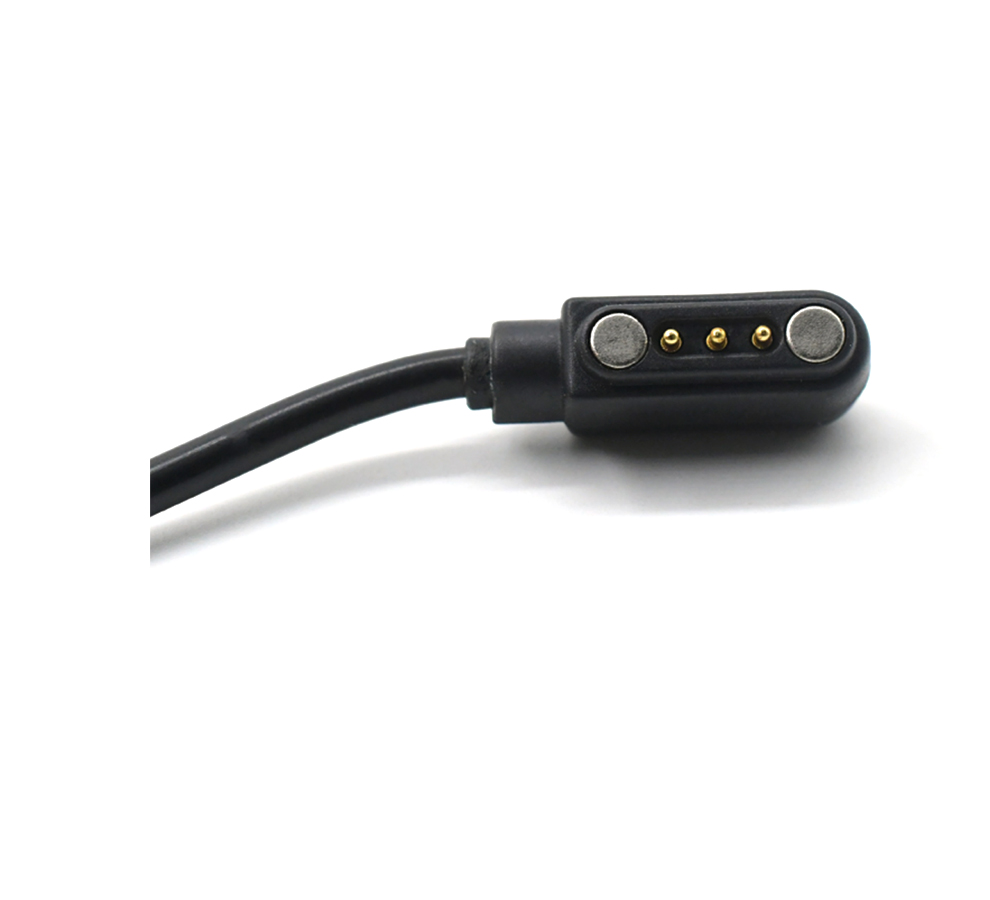

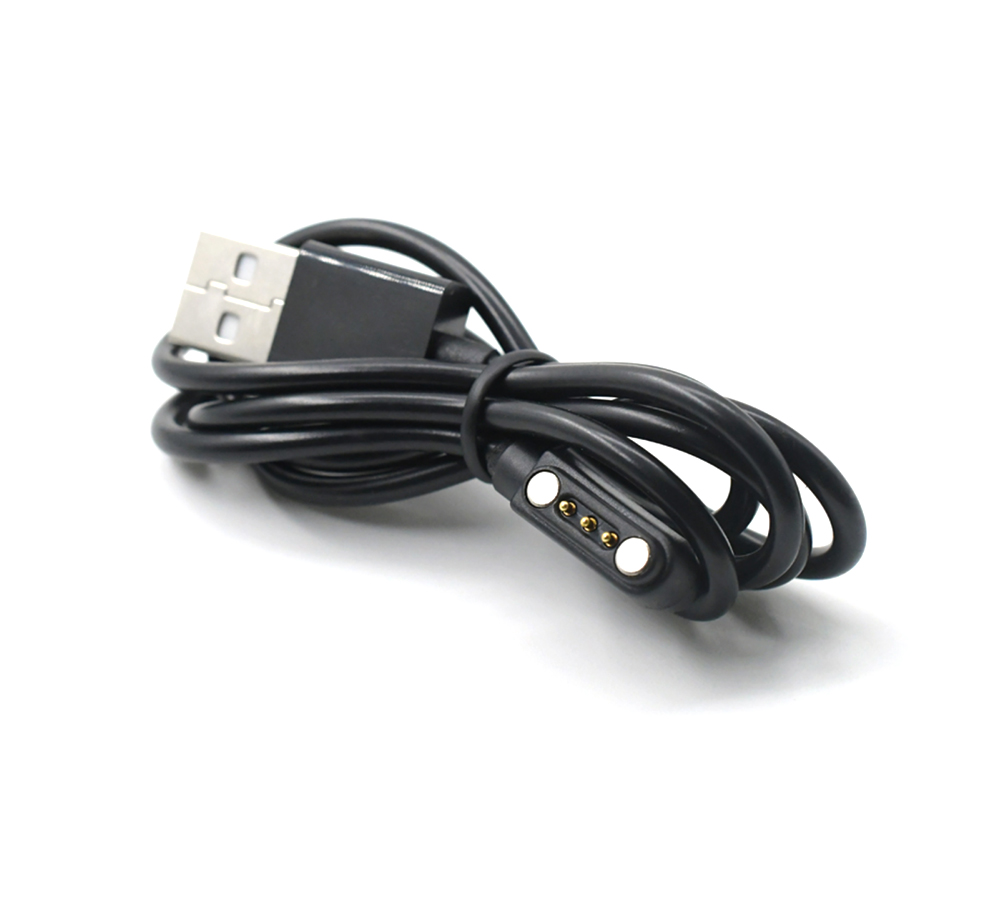

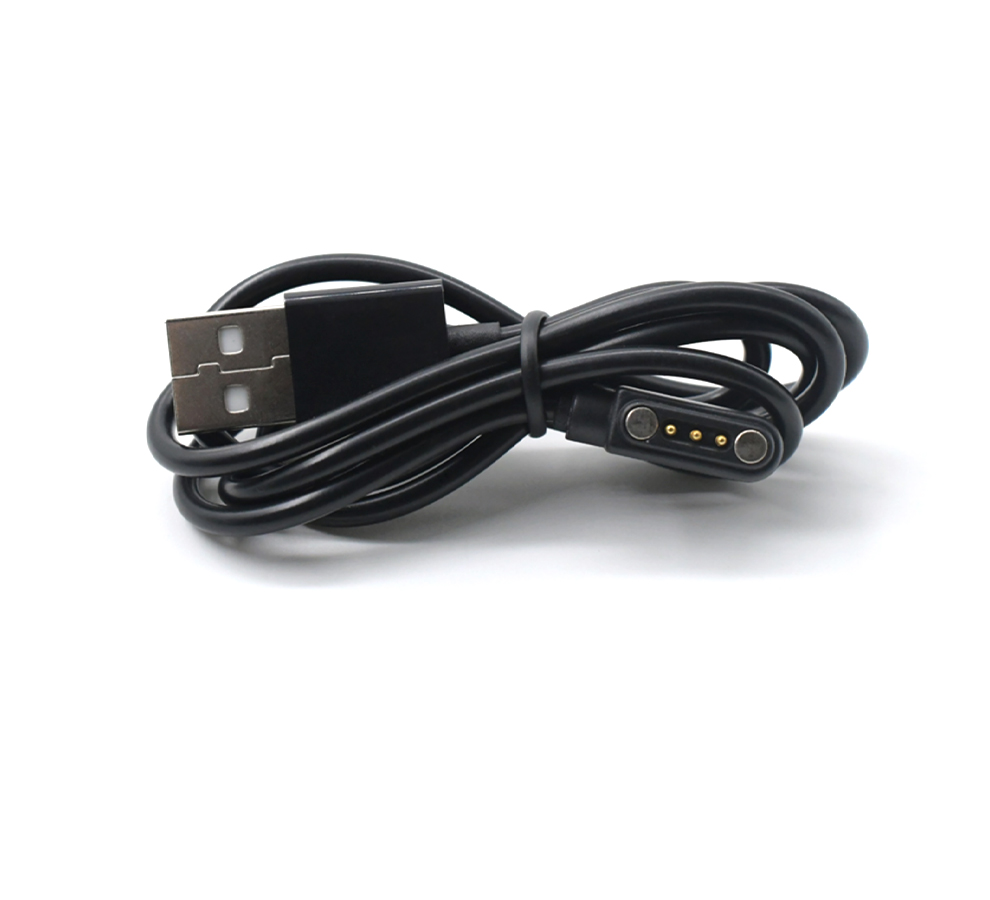

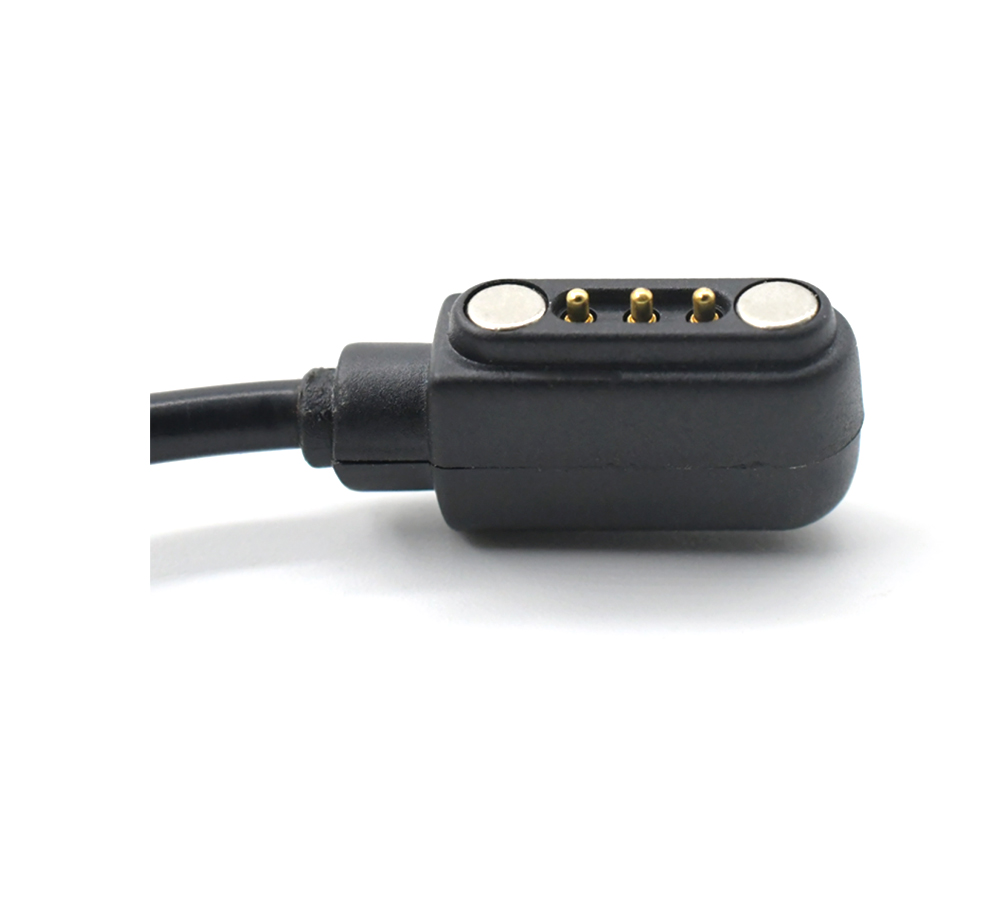

Magnetic data cable

The Magnetic data cable designed by Yongtan Electronics can stably transmit data, current, signals, etc., even in harsh environments. It utilizes magnetic principles to achieve adsorption, making operation convenient and simple. With a magnet fixed on one end of the product and a magnetic substance on the other, automatic alignment and adsorption can be achieved by simply bringing the two ends close together.

This design can be customized to achieve IPX8 waterproof rating, allowing it to perform without compromise when submerged in water up to 1-1.5 meters deep for 30 consecutive minutes, eliminating concerns about product damage from water exposure. It supports over 100,000 connections and is capable of handling stable high-current transmission ranging from 2A to 20A. To meet the diverse needs of customers, Yongtan offers customized solutions to match the shape of electronic products and enhance their overall quality.
