Needle: Brass (C3604)
Needle Tube: Brass (C3604)
Spring: Stainless Steel SUS304
Plastic: LCP/PA46/PA9T
Elasticity: Customizable elasticity and working stroke
Service Life: Over 50,000 cycles
Operating Current: Customizable
Operating Voltage: Customizable
Contact Resistance: <30mΩ (measured dynamically during the working stroke)
Plating Thickness: Can be processed according to customer requirements
Customization: Spring probes can be customized based on provided drawings or samples!

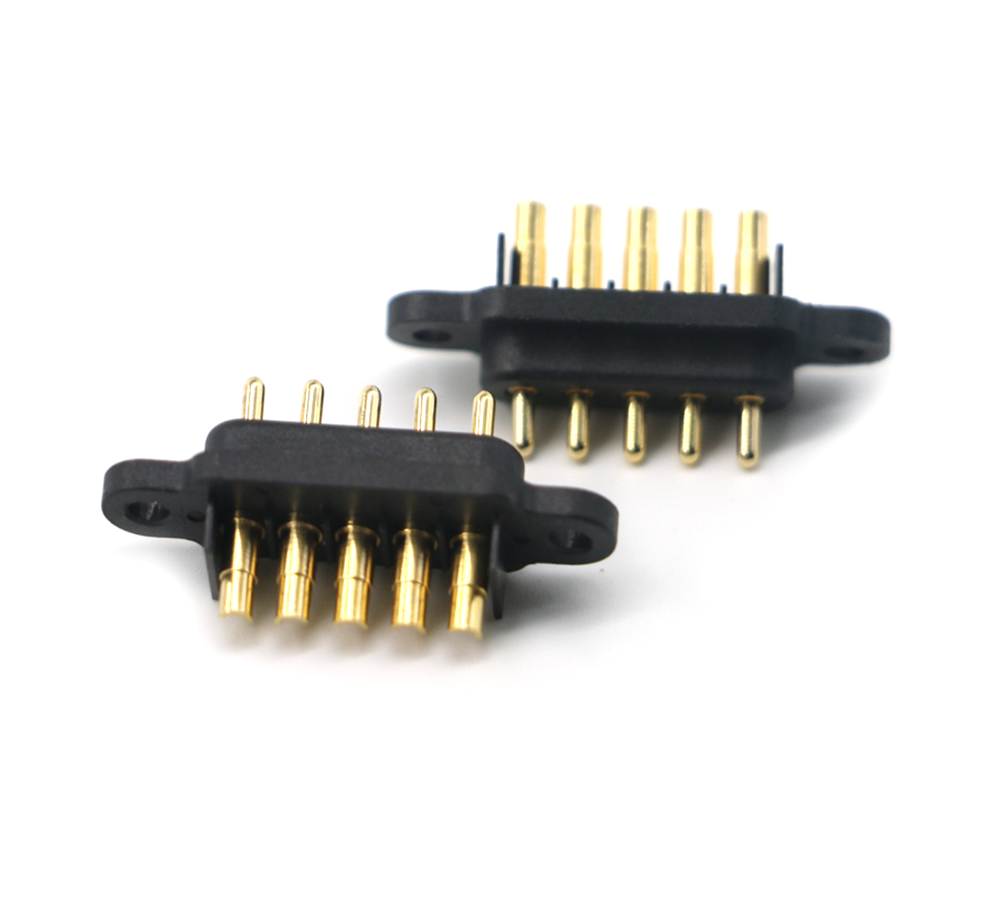

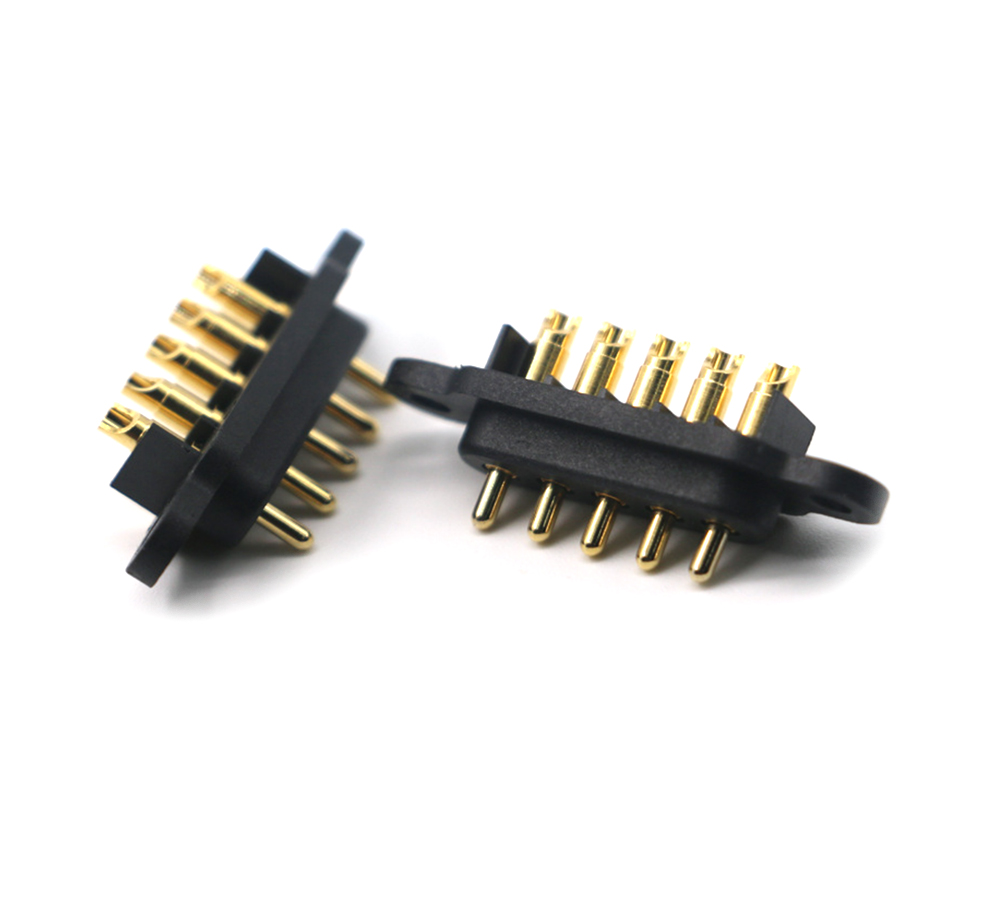

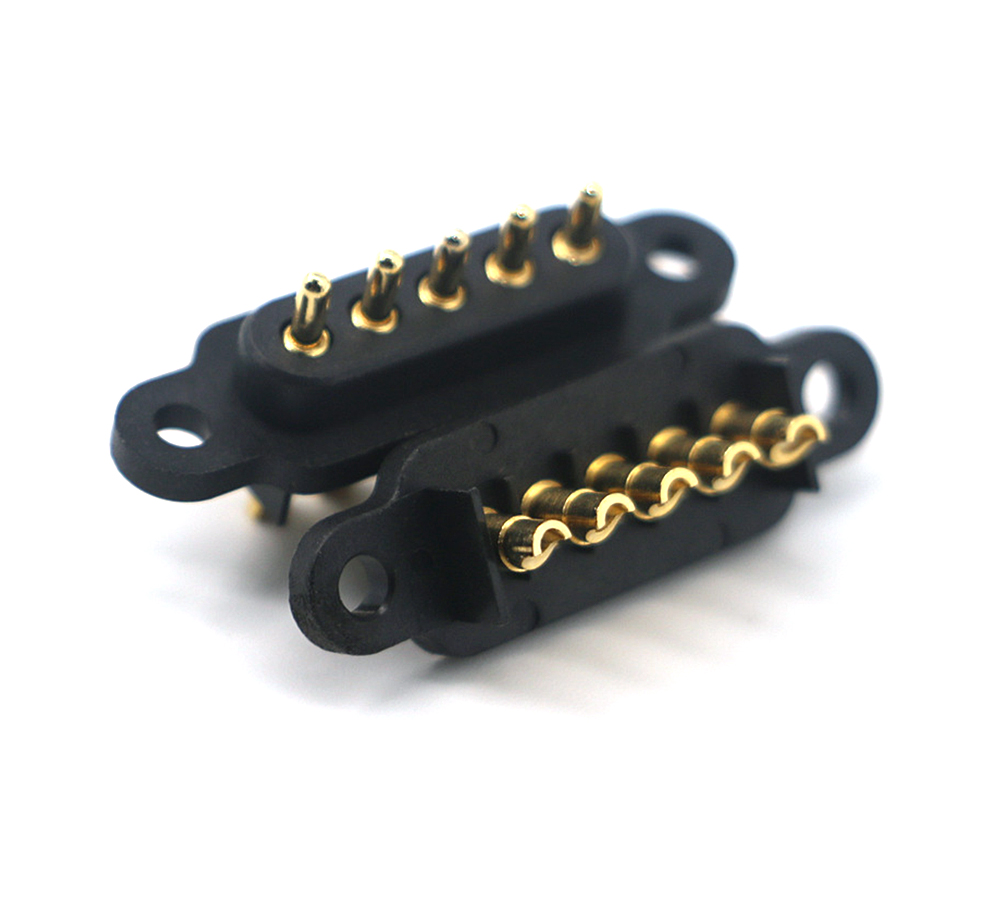

Pogo pin is a kind of elastic yellow deep pin formed by three basic components of needle (Punger), needle tube (Tube) and elastic parts (Spring) through steel pressing of precision instruments, also known as pogo pin, pogo thimble, pogo probe. Pogo pin connector products are widely used in the field.
1. Wearable devices, intelligent positioning devices (smart watches, smart bracelets, tws, etc.), charging cables, magnetic charging cables.
2.Medical equipment, wireless equipment, data communication equipment, industrial and automation equipment.
3.Aerospace,Industrial Electronic Communication.
4.Car navigator.
5.Measuring equipment, digital products.
6. Consumer electronics (mobile phone, computer, camera, printer, PDA, Bluetooth headsets, etc.).
